Brake disc Max 09.5390.77

Save in my list
This product replaces 09.5390.76.

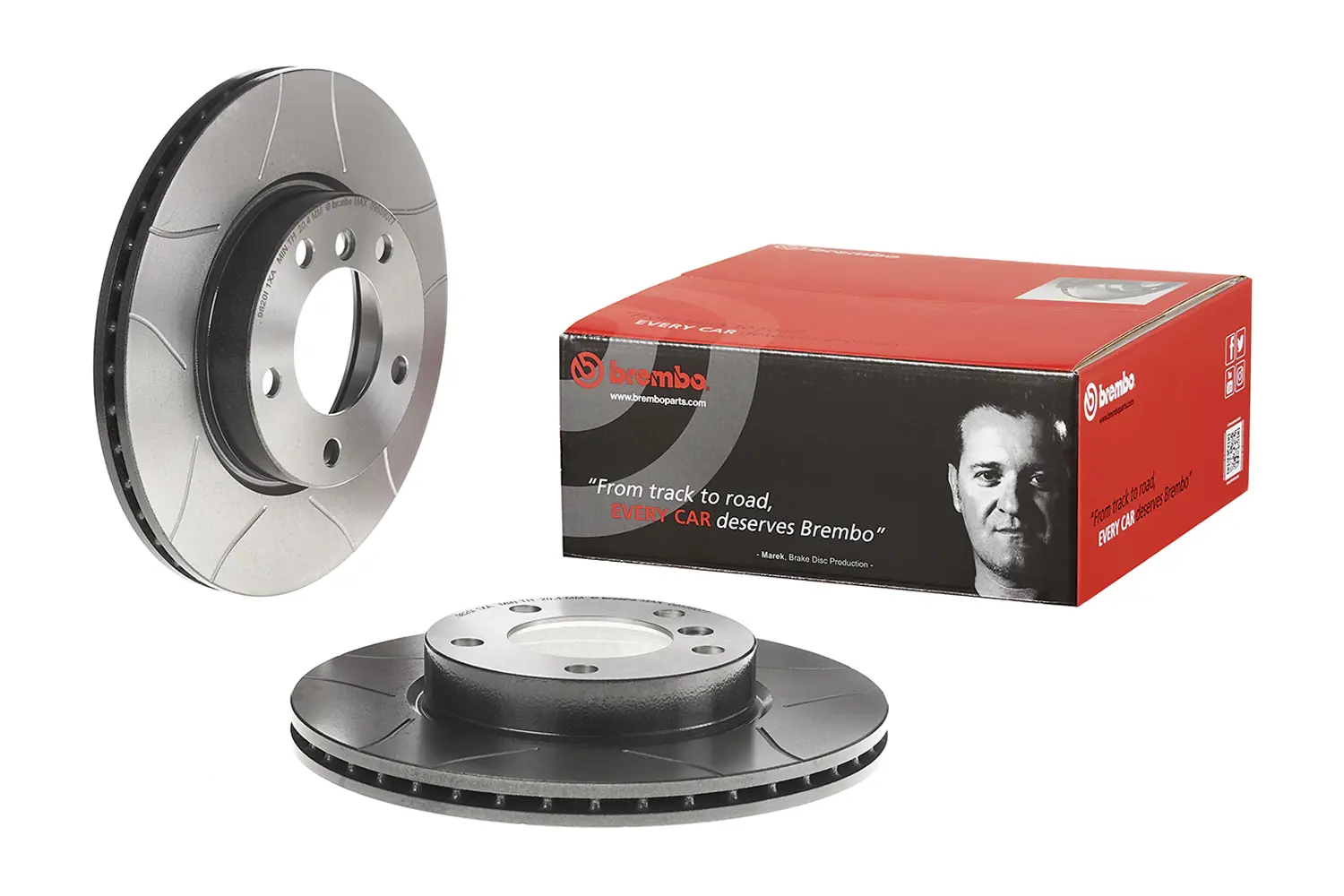

The 09.5390.77 Max brake disc is synonymous with reliability

The Brembo Max brake disc features grooves on the braking surface. The special shape of the grooves generates greater fading resistance and constant renewal of friction material, quickly restoring optimum braking conditions. The UV paint completes the sporty look.
Brembo quality
ECE-R90 certificate
Performance
Sports driving
Sporty look
High carbon
Anti-corrosion
Fastening screws

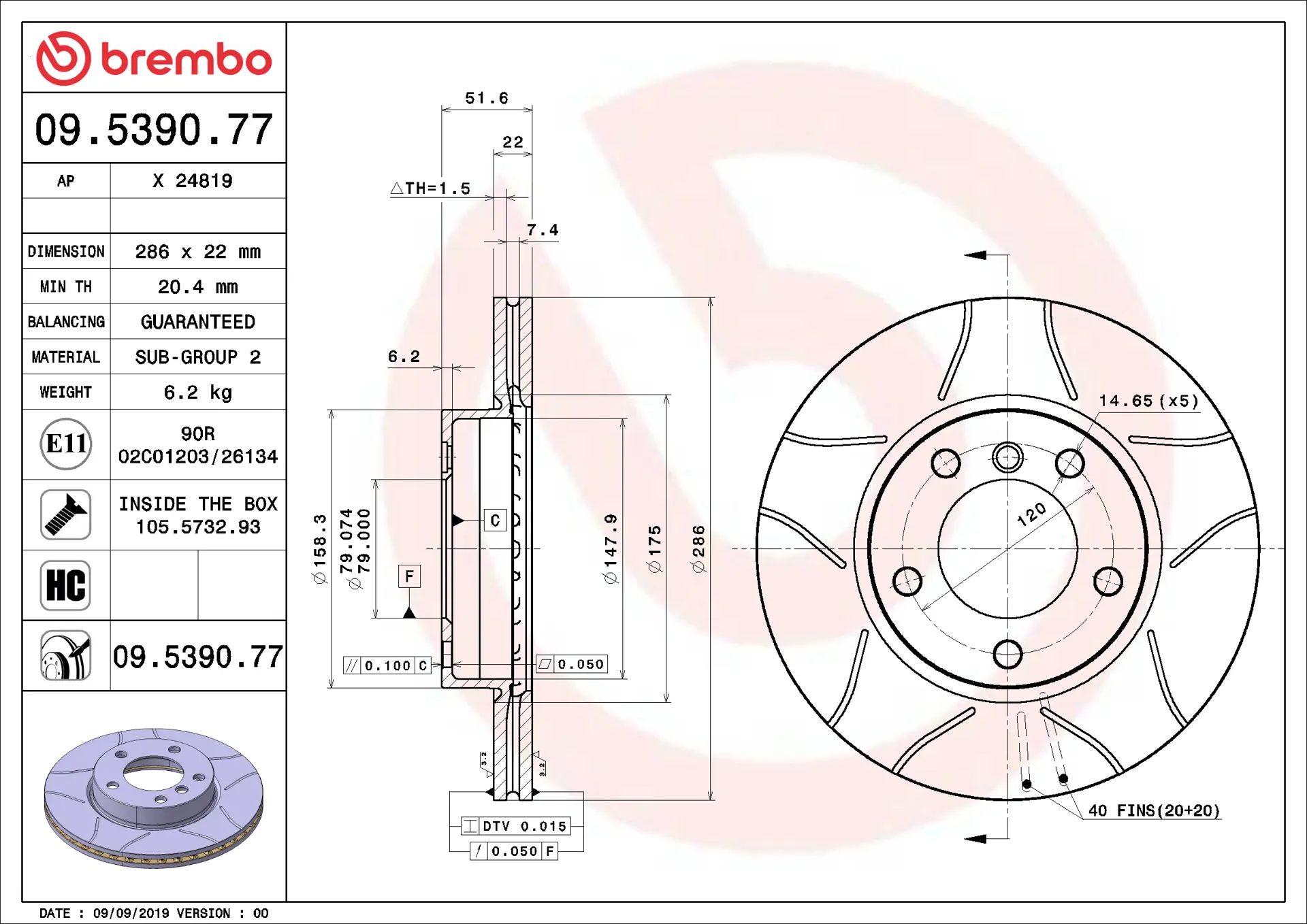

Technical specifications
Brake discs
Diameter Ø
286mm
Thickness (TH)
22mm
Height (A)
52mm
Number of holes (C)
5
Brake disc type
Ventilated
Centering (B)
79mm
Min. thickness
20,4mm
Tightening torque
120Nm
Axle
Front
Units per box
2
EAN code
8020584011829
09.5390.77
UNECE R 90 homologation
The entire range of Brembo Max brake discs has received the new UNECE R 90 homologation. Download the UNECE R 90 certification for your Brembo Max brake disc from the following link.
E11 90R-02C01203-26134.pdf (248.6 KB)
If you can’t find the certificate for the Brembo Max or Brembo Xtra part number you have selected or if you live in Switzerland, please get in touch. Click here
For vehicles circulating in Switzerland, an additional certification is required. It is issued exclusively by Rhiag Switzerland, our distributor for this market, at the time of purchase of the discs. For more information please visit the following link: https://www.rhiag.ch/it/contatto
