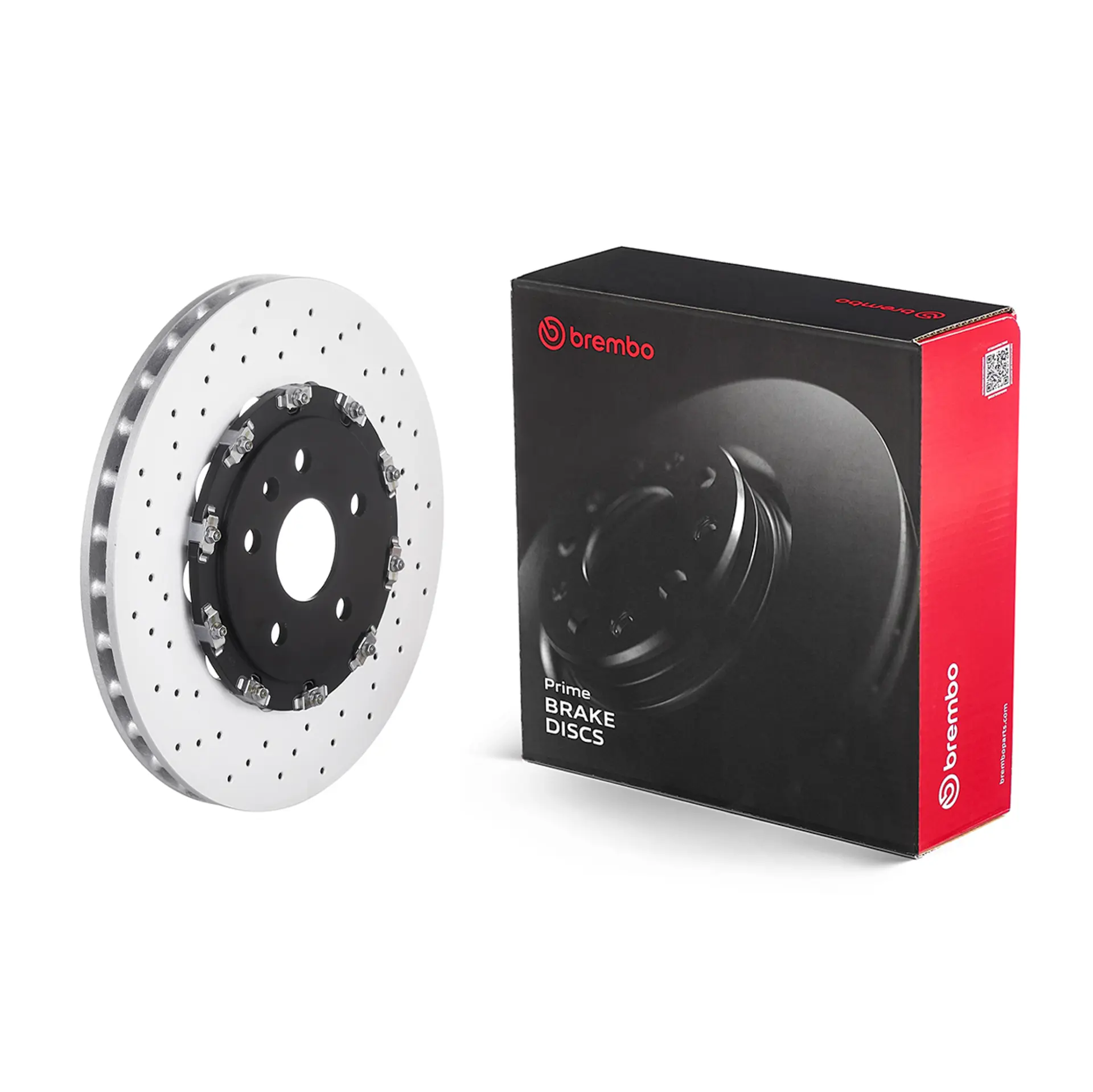

Brake disc Painted 09.A804.33

This product replaces 09.A804.23.

The 09.A804.33 painted brake disc is synonymous with reliability

The Brembo brake disc with special UV paint treatment guarantees superior corrosion resistance for the product, thanks to the protective coating on the outer edges and on the disc hub. The UV paint not only gives the disc a clean, shiny appearance but is also beneficial for the environment as the water-based UV paint treatment does not require the use of chemical solvents and is a low energy consumption process.
OE-equivalent
Brembo quality
ECE-R90 certificate
Safety
High carbon
Bi-Material Brake Disc
Anti-corrosion
PVT ventilation
Fastening screws
Technical specifications
Brake discs
Diameter Ø
355mm
Thickness (TH)
32mm
Height (A)
50mm
Number of holes (C)
5
Brake disc type
Ventilated
Centering (B)
67mm
Min. thickness
30mm
Tightening torque
150Nm
Axle
Front
Units per box
1
EAN code
8020584215197
09.A804.33
UNECE R 90 homologation
The entire range of Brembo Max brake discs has received the new UNECE R 90 homologation. Download the UNECE R 90 certification for your Brembo Max brake disc from the following link.
E11 90R-02C01203-26096.pdf (852.5 KB)
