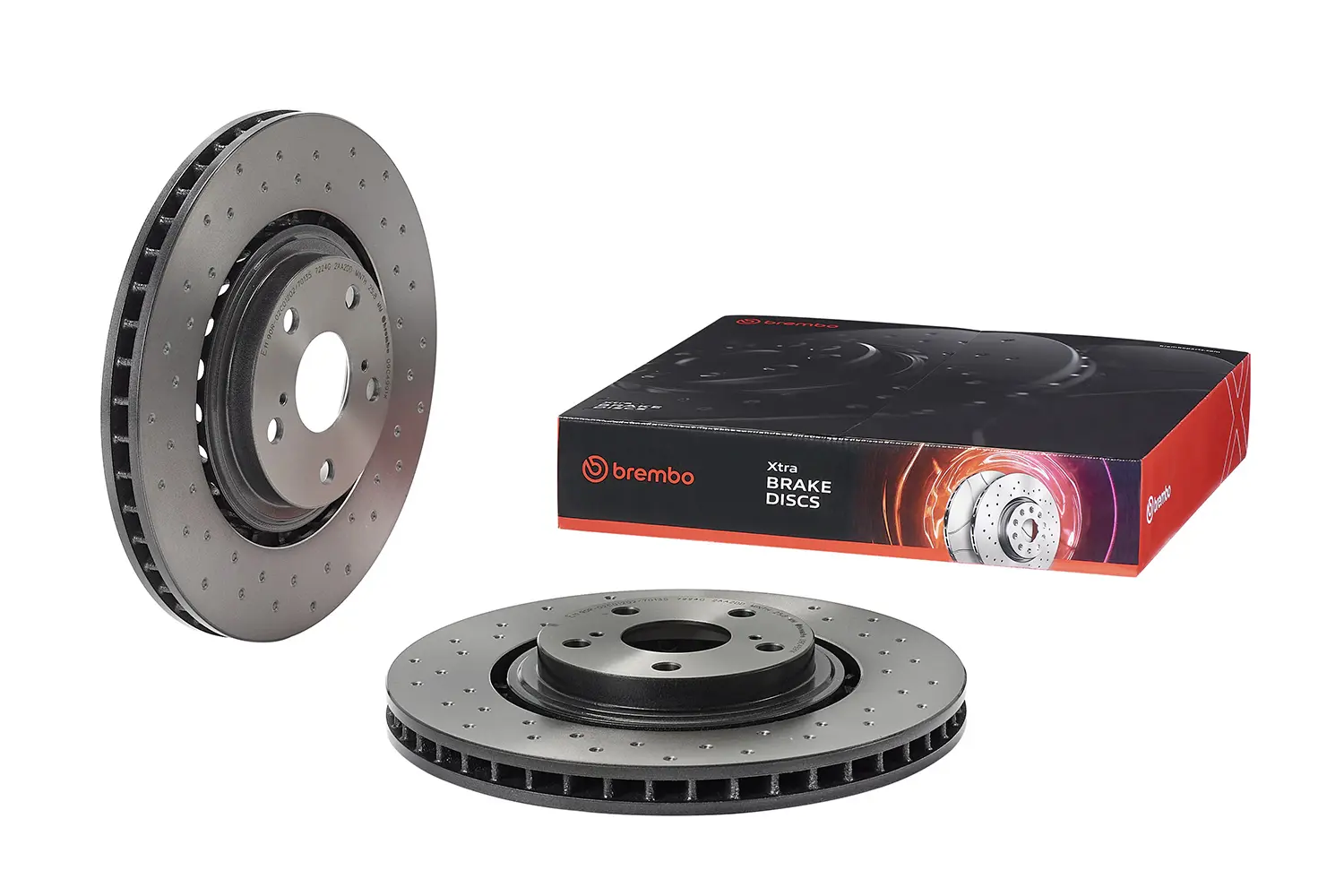

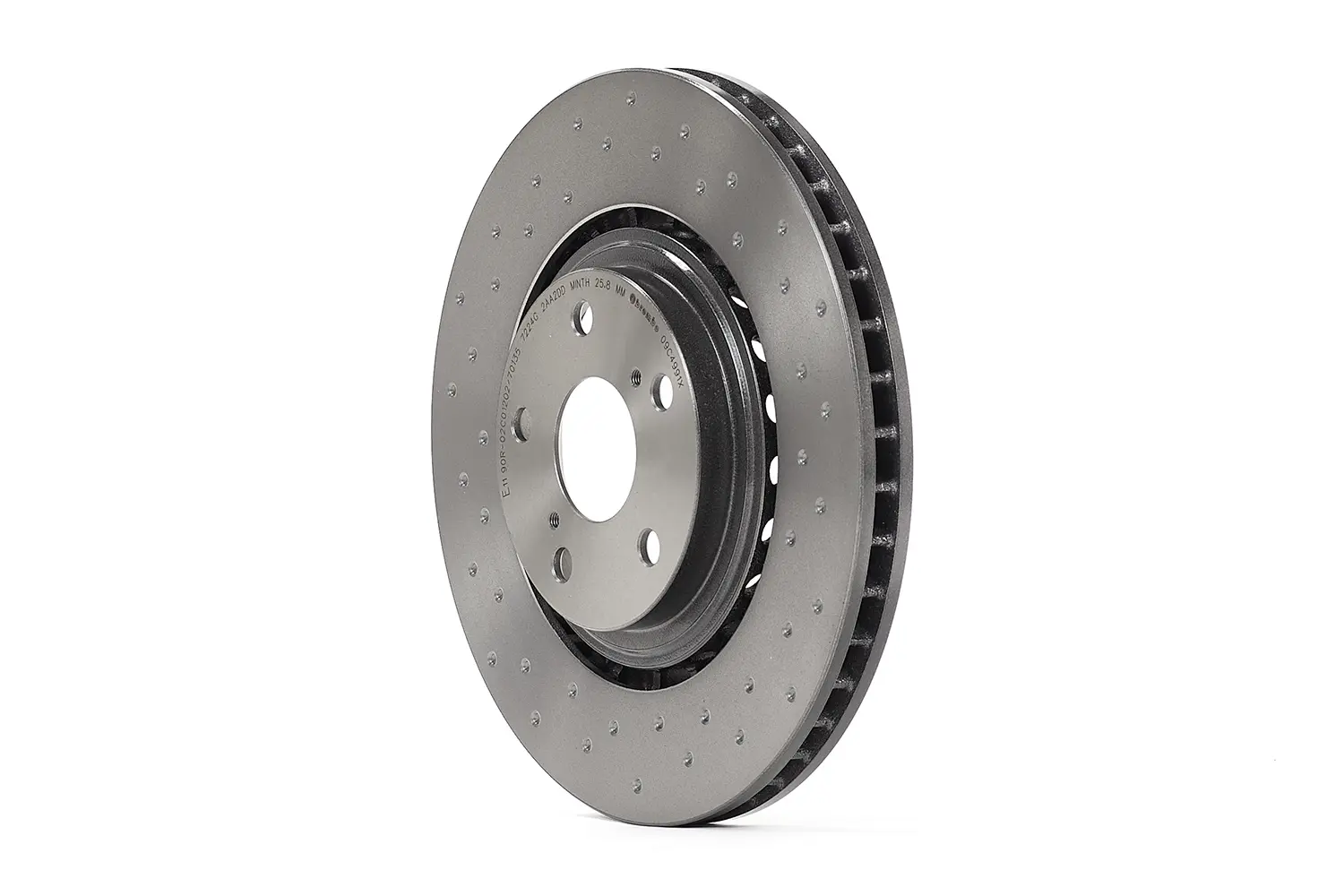

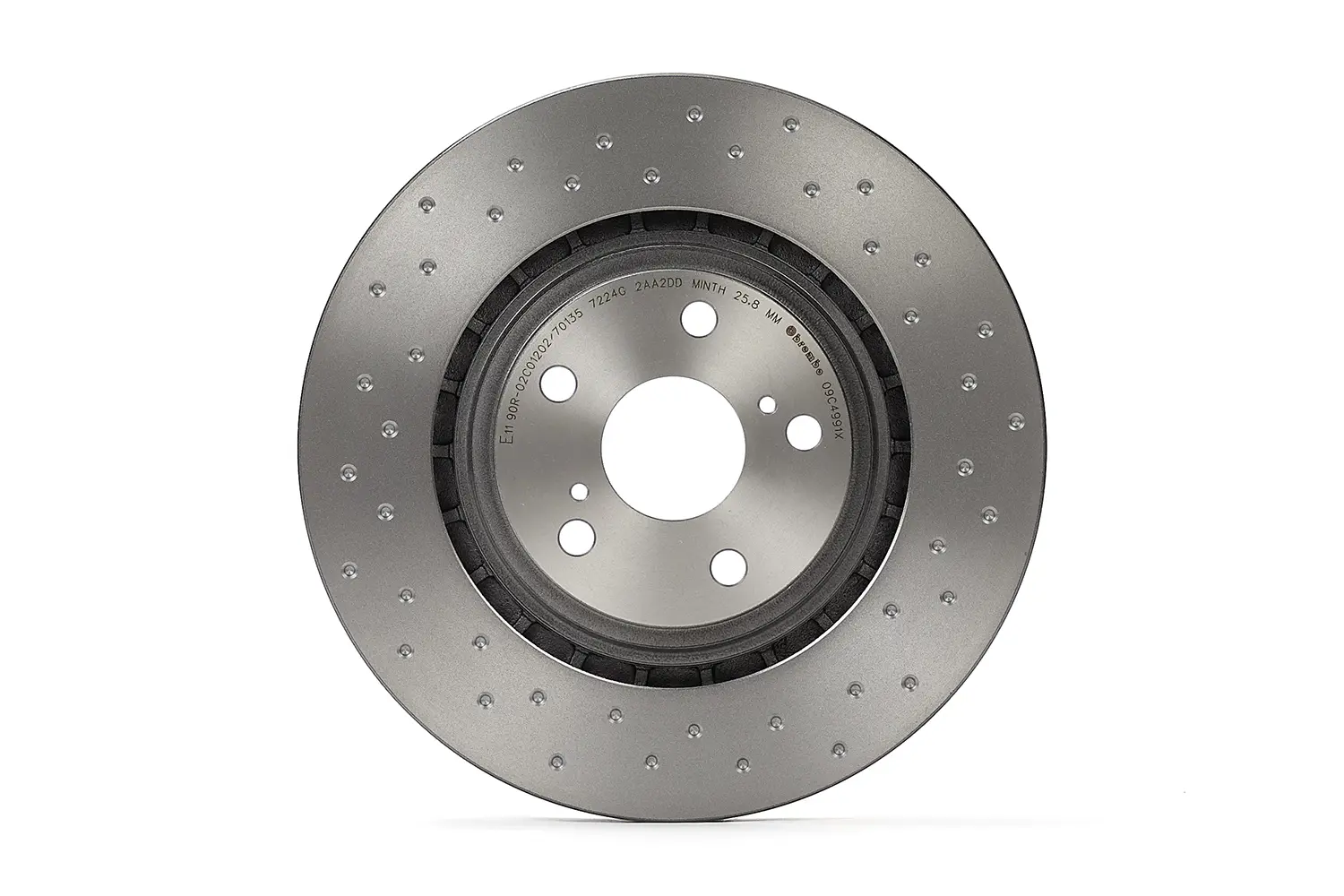

Brake disc Xtra 09.C499.1X

The 09.C499.1X Xtra brake disc is synonymous with reliability

The Brembo Xtra brake disc features holes on the braking surface. The holes are designed to improve the cooling of the braking system, to generate greater fading resistance and grip in the initial stages of braking. The sports look is also enhanced by the presence of the UV paint.

Brembo quality

ECE-R90 certificate

Performance

Sports driving

Sporty look

Anti-corrosion

Where to Buy

Assembly instructions

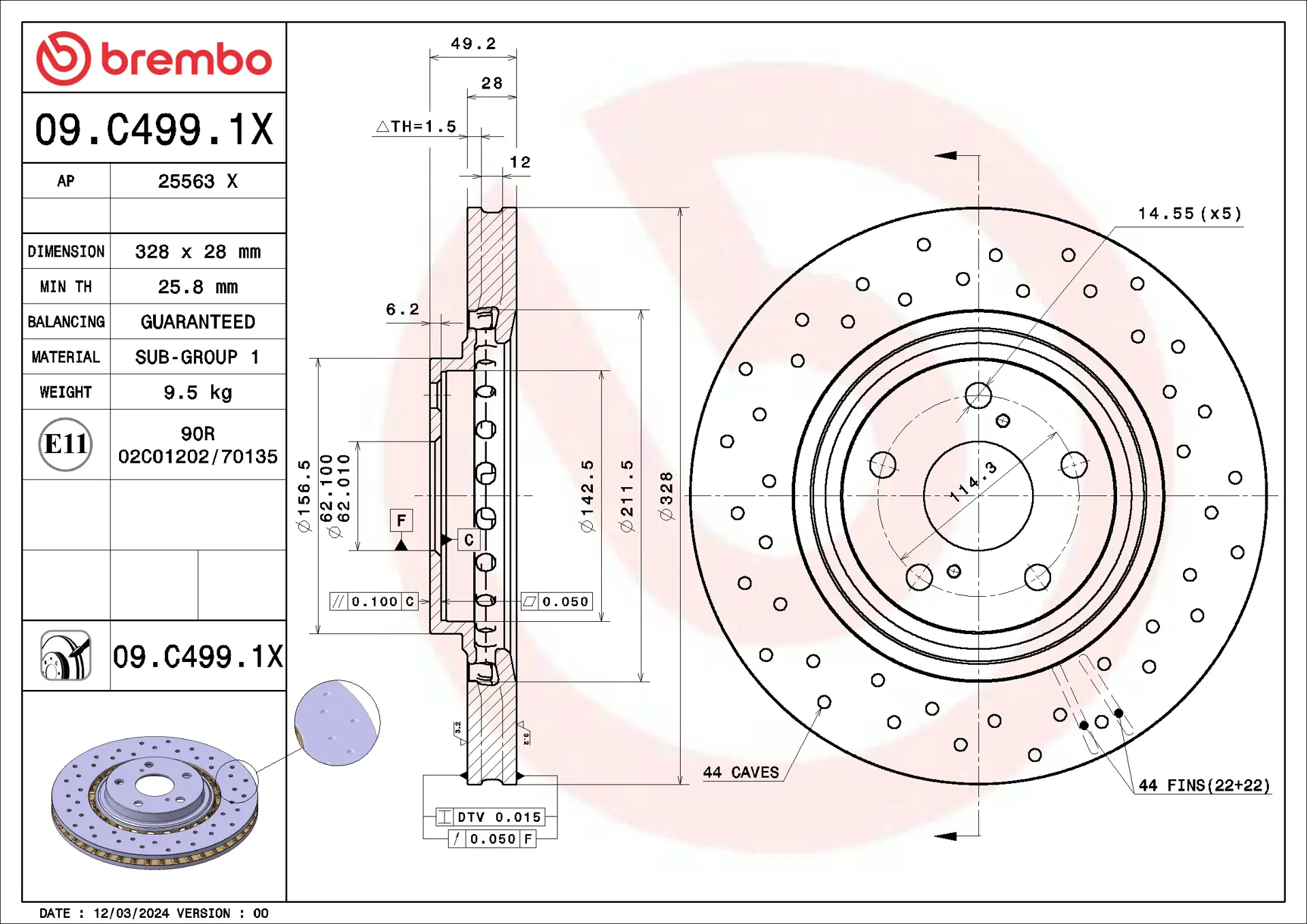

Technical specifications

Diameter Ø

328mm

Thickness (TH)

28mm

Height (A)

49,2mm

Number of holes (C)

Brake disc type

Ventilated

Centering (B)

62mm

Min. thickness

25,8mm

Axle

Front

Units per box

EAN code

8020584327821

Technical data sheet

UNECE R 90 homologation for the entire range of Brembo Xtra brake discs

The entire range of Brembo Xtra brake discs has received the new UNECE R 90 homologation. Download the UNECE R90 certification for your Brembo Xtra brake disc from the following link.

E11 90R-02C01202-70135.pdf (299.4 KB)

If you can’t find the certificate for the Brembo Max or Brembo Xtra part number you have selected or if you live in Switzerland, please get in touch. Click here
For vehicles circulating in Switzerland, an additional certification is required. It is issued exclusively by Rhiag Switzerland, our distributor for this market, at the time of purchase of the discs. For more information please visit the following link: https://www.rhiag.ch/it/contatto

For any enquiries, please write to information request
